Motor Controller - up to 550W
- Input: 180-265V
- Power: 90W / 150W / 220W / 300W / 350W / 450W / 550W
- Speed: PWM Speed Regulation
- Communication: Serial Communication / Sensorless FOC
- Size: 100 × 120mm
Our Products
High-performance BLDC motor solutions for modern applications.
Product platforms for ventilation, pedestal fans, air coolers, chimneys, air showers, motor control and compressor applications.
Ventilation
BLDC Motors for Exhaust Fans
High-efficiency motors designed to reduce power consumption while ensuring reliable ventilation performance.
| Size | 6” / 8” / 10” / 12” |
|---|---|
| Wattage | 5W / 11W / 15W / 18W |
| RPM | 1350 / 1350 / 1250 / 1150 |
Fan Control
Pedestal Fan Controller
Reliable controller architecture designed for smooth operation, directional control and long-lasting performance.
| Input Voltage | AC110V-220V |
|---|---|
| Output | 80W |
| Size | 93mm × 58mm |
| Direction | Forward and Reverse |
| Speed | VSP Speed Adjustment |
| Remote | 433 Remote / Shaking Head |
| Certification | EMC / EMI |
Cooling Systems
Air Cooler Controller
Designed for efficient cooling and reliable operation with protection, water support and convenient remote control.
| Input Voltage | AC110-265V |
|---|---|
| Wattage | 50-170W |
| Protection | Over/Undervoltage, Overcurrent |
| Motor Protection | Phase Loss / Locked Rotor |
| Direction | Forward and Reverse |
| Water Support | Water Pump / Shaking Head |
| Control | 433 Remote + VSP Speed Adjustment |
DC Applications
DC Motor Controller
Advanced DC motor control designed for efficient performance, protection and reliable operation.
| Input Voltage | 18-25V |
|---|---|
| Output | 50W Max |
| Size | 58mm |
| Protection | Over/Undervoltage, Overcurrent, Phase Loss, Locked Rotor |
| Direction | Forward and Reverse |
| Memory | Power Down Memory |
| Brake | Parking Brake |
| Technology | Non-Sensory FOC |
High Power Control
Motor Controller Platforms
Scalable controller solutions for air coolers, AC outdoor units, chimneys, exhaust fans and related systems.

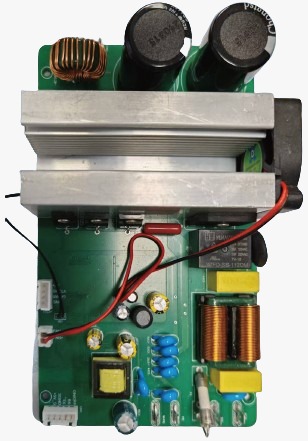

Motor Controller - up to 800W
- Input: AC180-265V
- Output Power: 800W Max
- PFC Circuit: No
- Protection: Over/Undervoltage, Overcurrent, Phase Loss, Locked Rotor
- Communication: Serial Communication / Sensorless FOC
- Size: 170 × 100mm
Compressor Control
Compressor Controller Variants
Smart, reliable and efficient controllers engineered for automotive-grade performance with advanced protection and precise control.

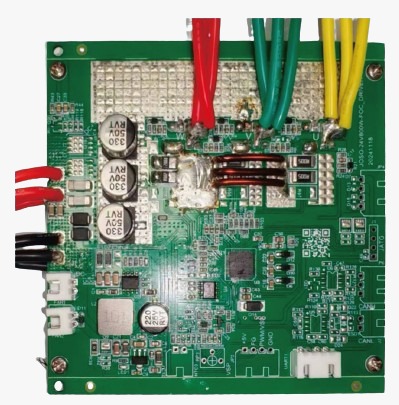

50A Controller
18-33V input, 50A rated output, PWM 10%-100%, VSP 0-5V, communication support and protection.

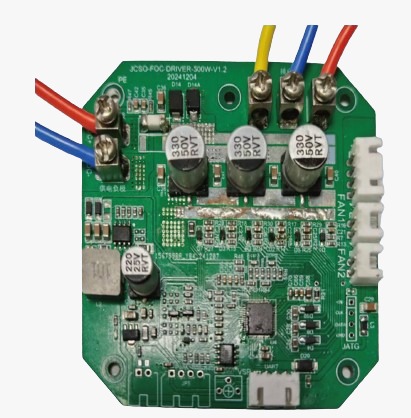

15A Controller
18-33V input, 15A rated output, precise speed control, automotive-grade closed-loop operation and communication interfaces.
20A Controller
18-33V input, 20A rated output, PWM/VSP control, Sensorless FOC and multi-layer protection support.
Need a customized BLDC solution?
Send your application and technical requirement directly to our team.
